- Vacuum Sanitary Systems
Jets® Vacuum and Poloplast
The vacuum and sanitary system for any vessel.
By combing Jets® Vacuum and Poloplast we can offer a package whose elements match perfectly.
- Vacuum Sanitary Systems
Jets® Vacuum AS
Jets® develops and manufactures vacuum toilets, vacuum systems and sewage treatment plants.
The corporations headquarter is located in Hareid, Norway. Growing up in the Norwegian maritime cluster, Jets® is now an international and diverse supplier with many land-based and maritime market segments.
Jets® vacuum systems are appreciated for their reliability and high standard all over the world. The simplicity of a Jets® vacuum system provides reliable operation and comfortable sailing.
Its inherent flexibility also gives you greater freedom in your design choices.
Thanks to low water consumption, smaller pipes and easy installation, the plumbing is flexible.

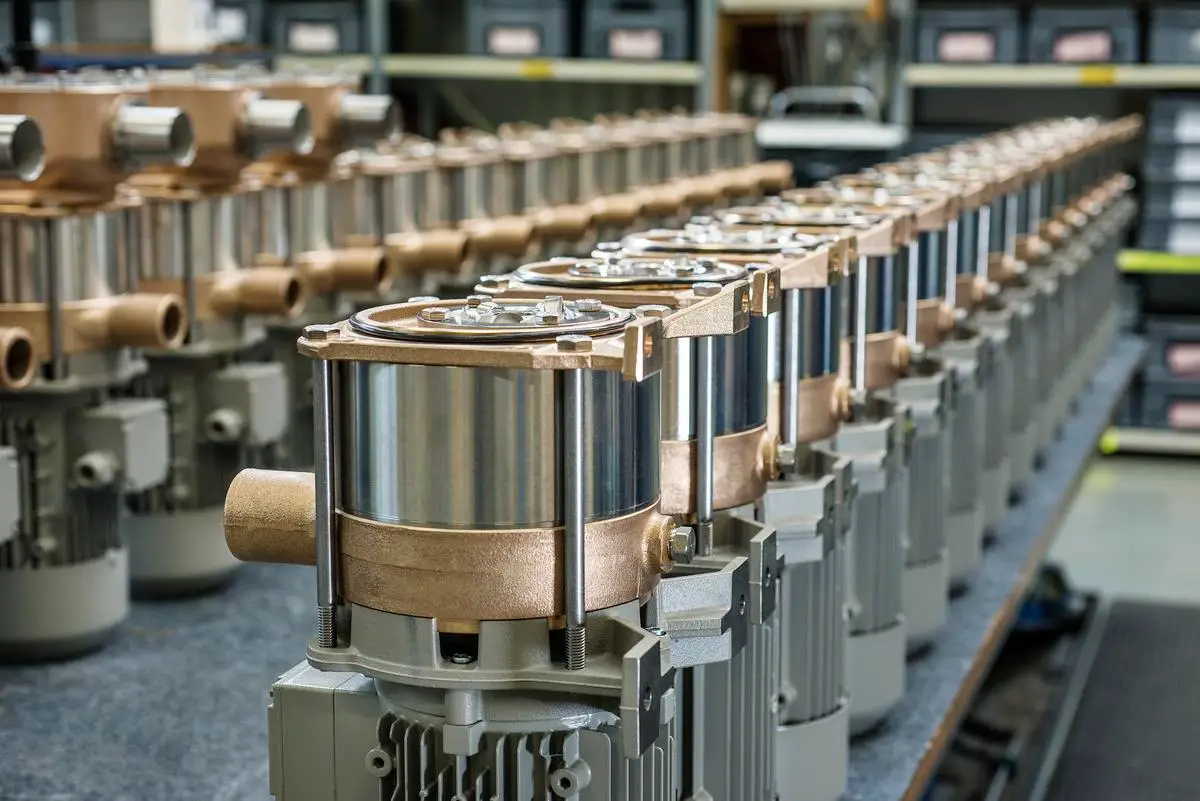

Vacuumarator® Pumps

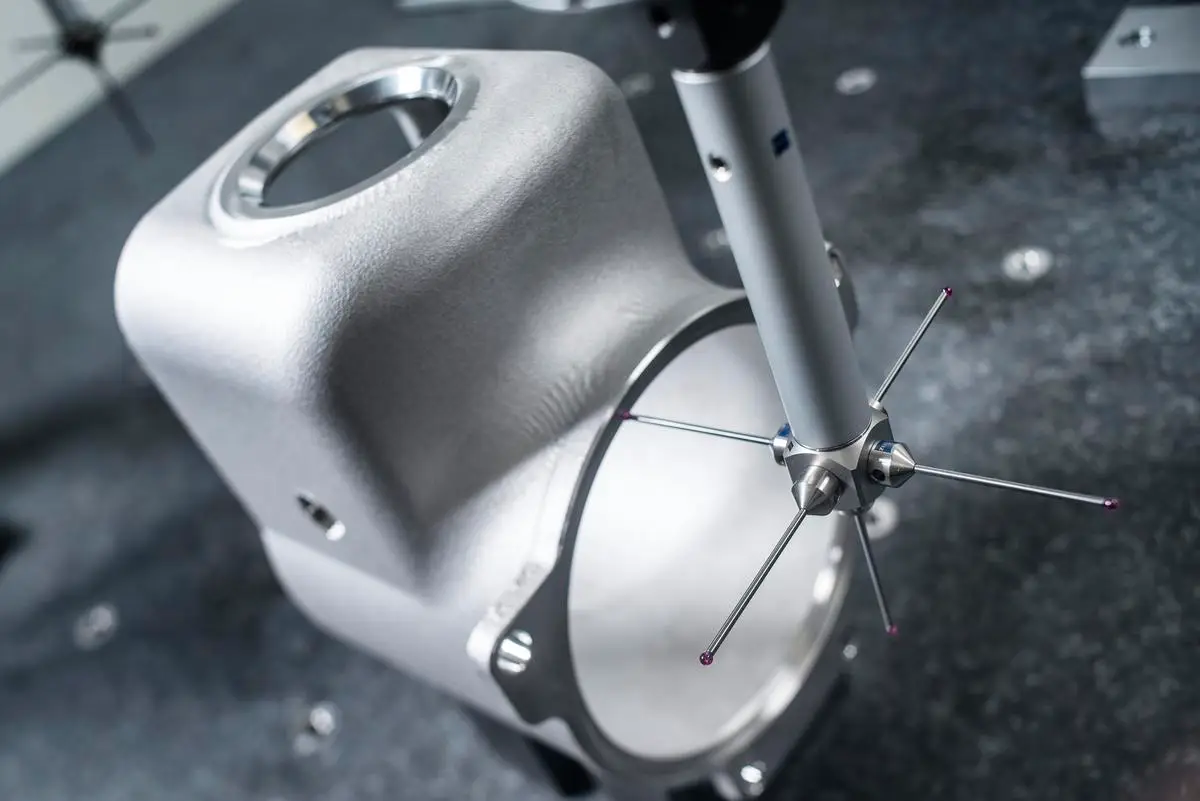

The unique Vacuumarator® pump is the heart of any Jets® system. It creates vacuum, macerates sewage and discharges – in one single-pass operation. Its small footprint and low weight allow unique installation flexibility. The Vacuumarator® pump is the most reliable vacuum generator available for vacuum toilet systems and provides unmatched system performance.
- Edge S 13 m³/h 50% Vacuum at 50Hz
- Edge M 30 m³/h 50% Vacuum at 50Hz
- Edge L 62 m³/h 50% Vacuum at 50Hz

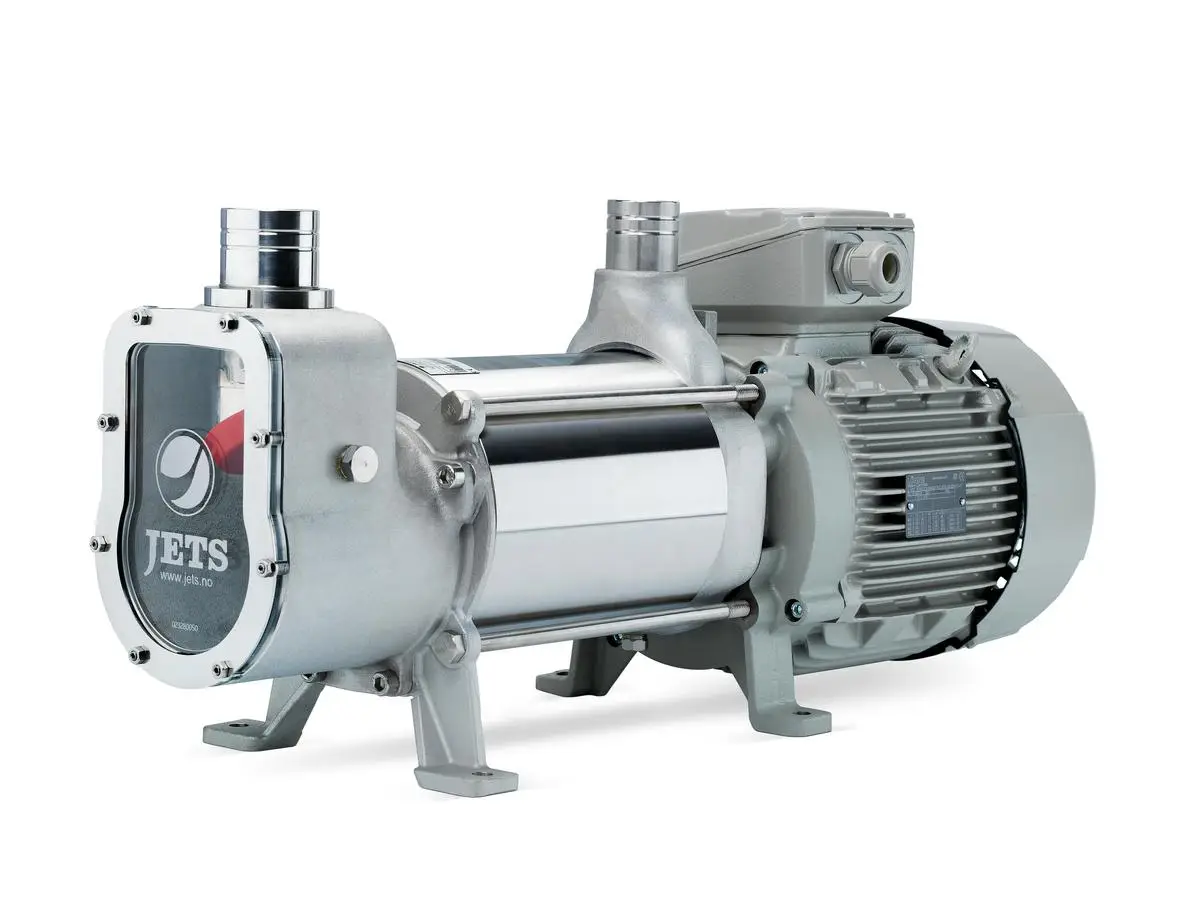

- Edge XL 78 m³/h 50% Vacuum at 50Hz

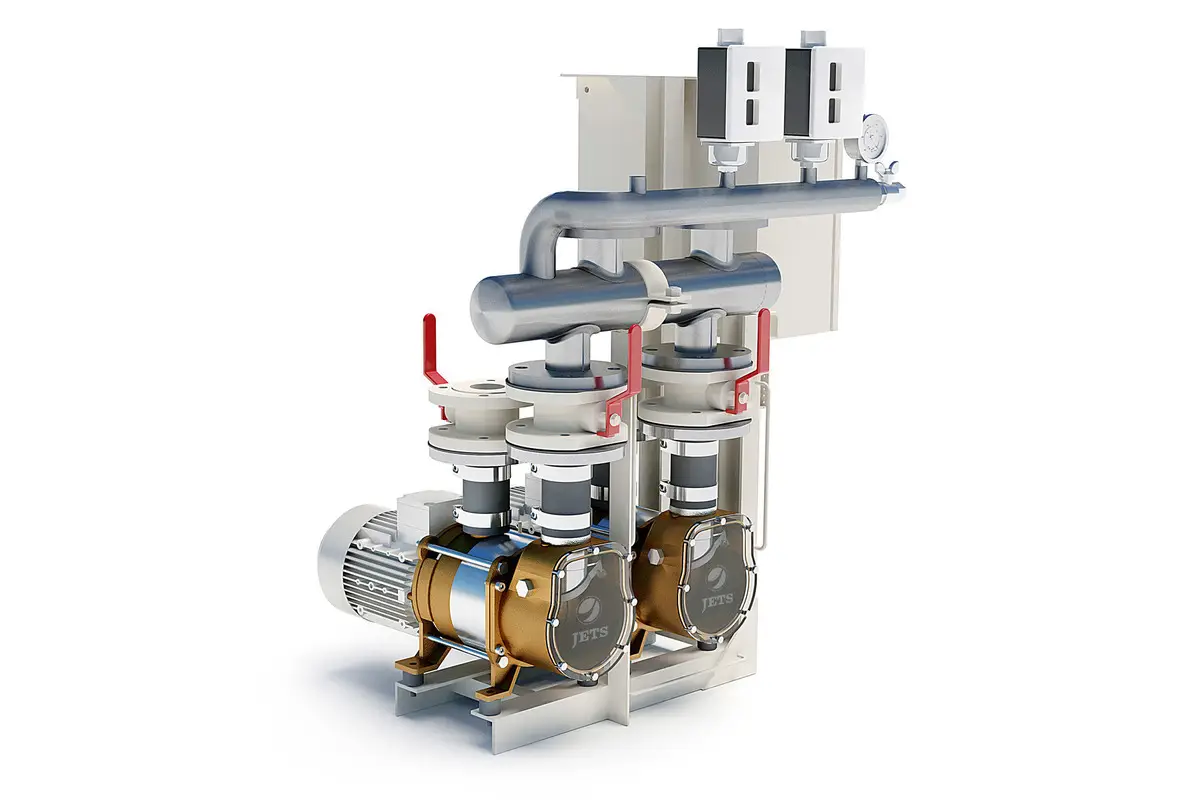

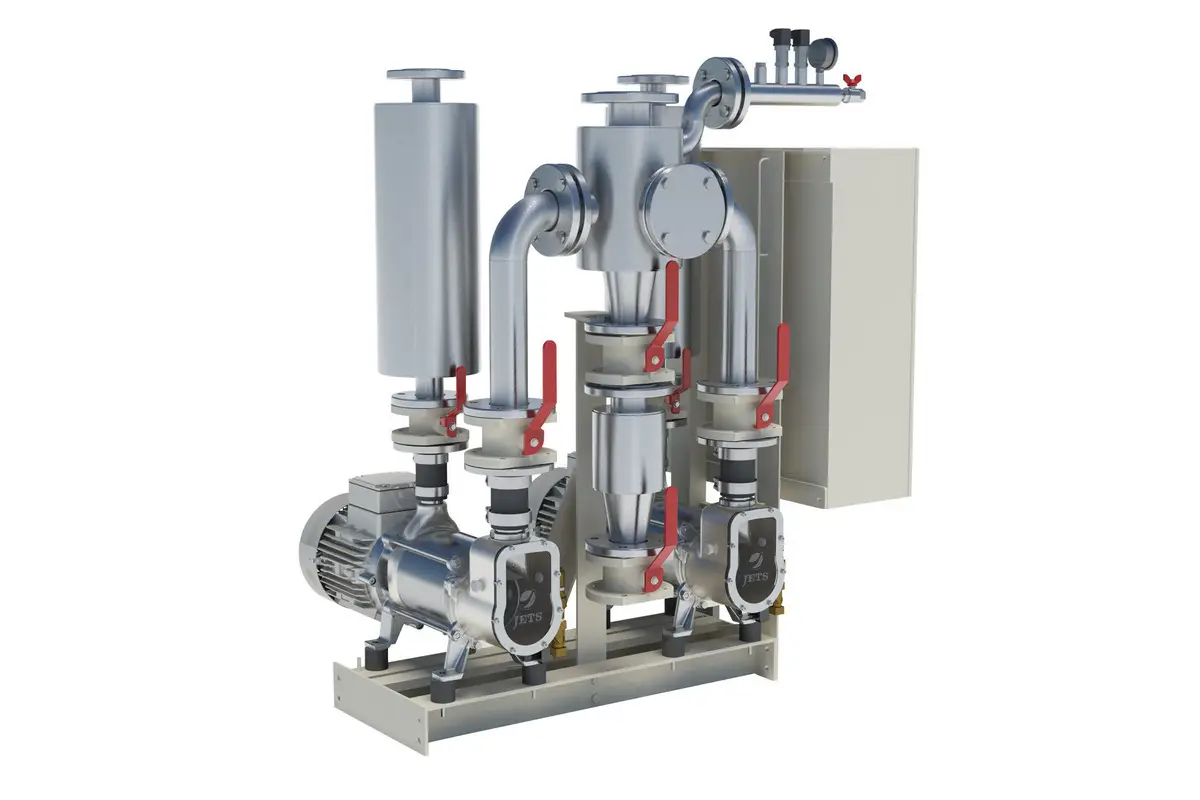

Vacuumarator® Units

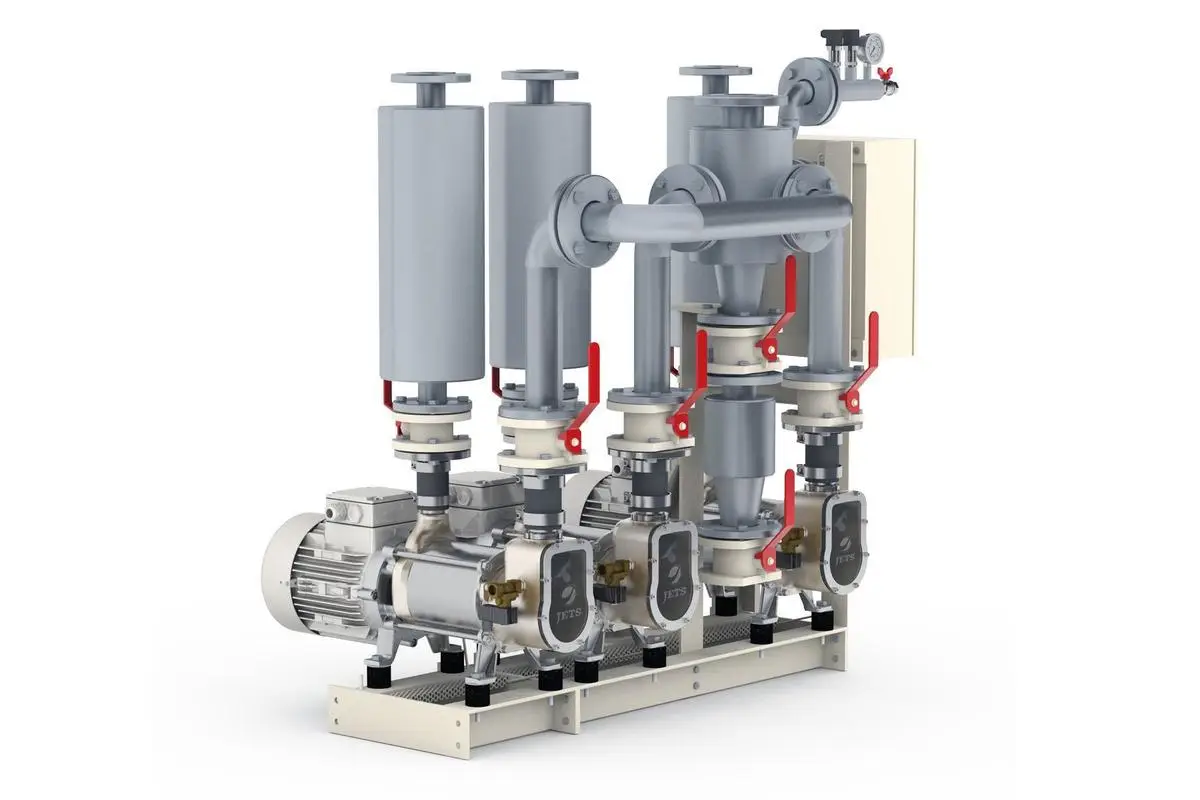

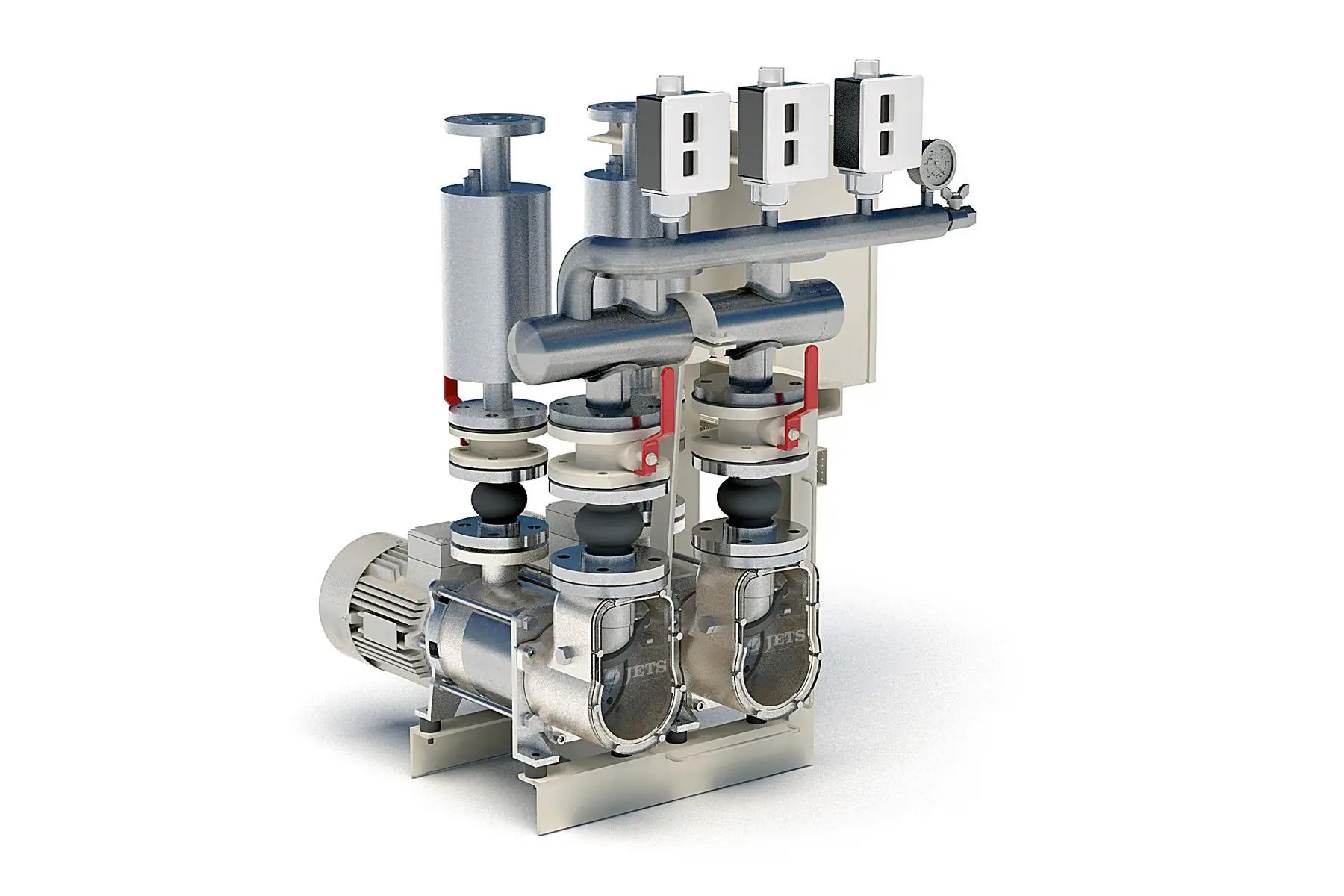

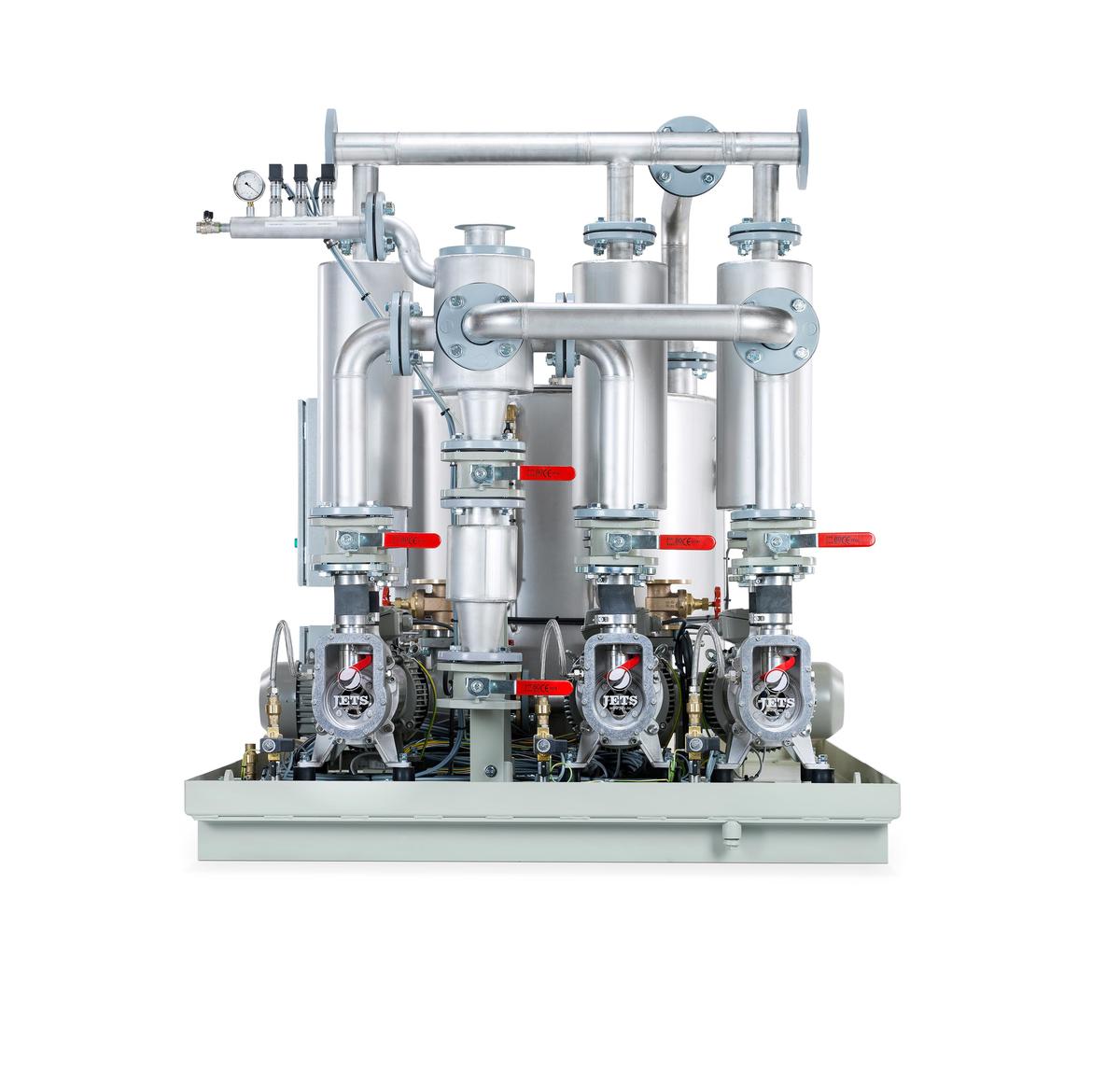

Vacuumarator® Units are available in four different sizes corresponding with the size of the Vacuumarator® pumps each (S, M, L, XL) and can be supplied with one, two or three pumps (mono, duo, trio).
- Added redundancy
- Increased vacuum generation capacity
- Operational reliability
- Automated monitoring and control of vacuum levels
Jets® Vacuum Toilets and Urinals
Award-winning design
Vacuum toilets have a number of advantages over traditional water-flushing toilets, as they use air instead of water to transport sewage.
- Flexible installation: Vertical and horizontal pipes
- Only 1 litre of water required per flush
- No ventilation required
High Quality Vacuum Toilets by Jets®
Jets® Charm
- Nozzle flushing
- Easy to keep clean
- Low water consumption
- Soft closing seat and cover
Jets® Jade Wall
- Softsound ™
- Flushing ring with nozzles
- Designed for easy maintenance
- Low water consumption with enhanced flush and discharge
- Quick and quiet closing seat and cover
Jets® Pearl
- Nozzle flushing
- Ergonomic design
- Low water consumption
- Soft closing seat and cover

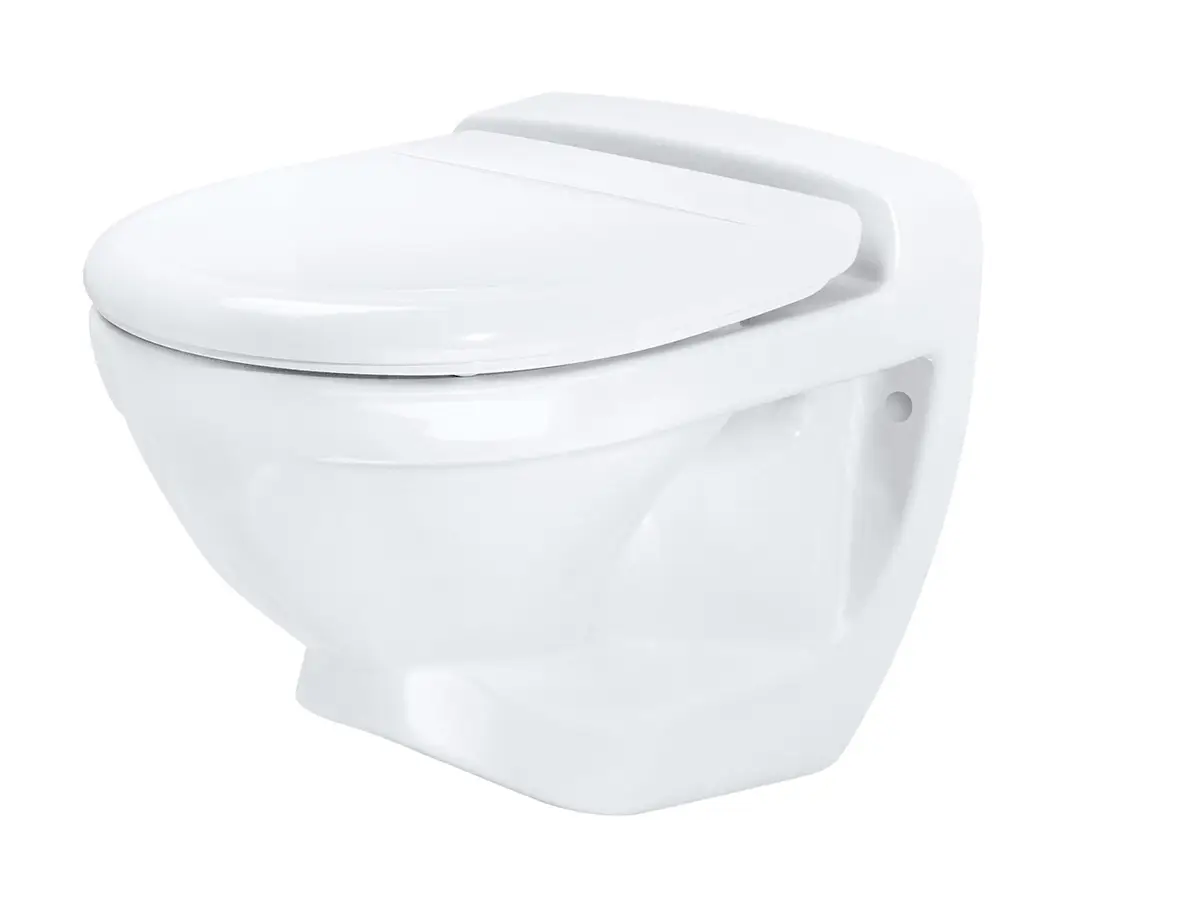

Jets® 59M
- Nozzle flushing
- The classic model
- Low water consumption
- Soft closing seat and cover
Jets® 609SS
- Nozzle flushing
- Low weight
- Low water consumption
- Soft closing seat and cover
Jets® Opal – TOTO Electronic bidet
- Fitted with TOTO electronic bidet
- Optimal hygiene and comfort
- Warm water nozzle
- Heated seat
- Deodorizer
- Dryer
- Need for electric connection and additional water supply for the seat
Jets® Opal – USPA Electronic bidet
- Fitted with USPA electronic bidet
- Optimal hygiene and comfort
- Warm water nozzle
- Heated seat
- Deodorizer
- Dryer
- Intelligent energy saving function
- Need for electric connection and additional water supply for the seat
Floor/deck Mounted Toilets by JETS®

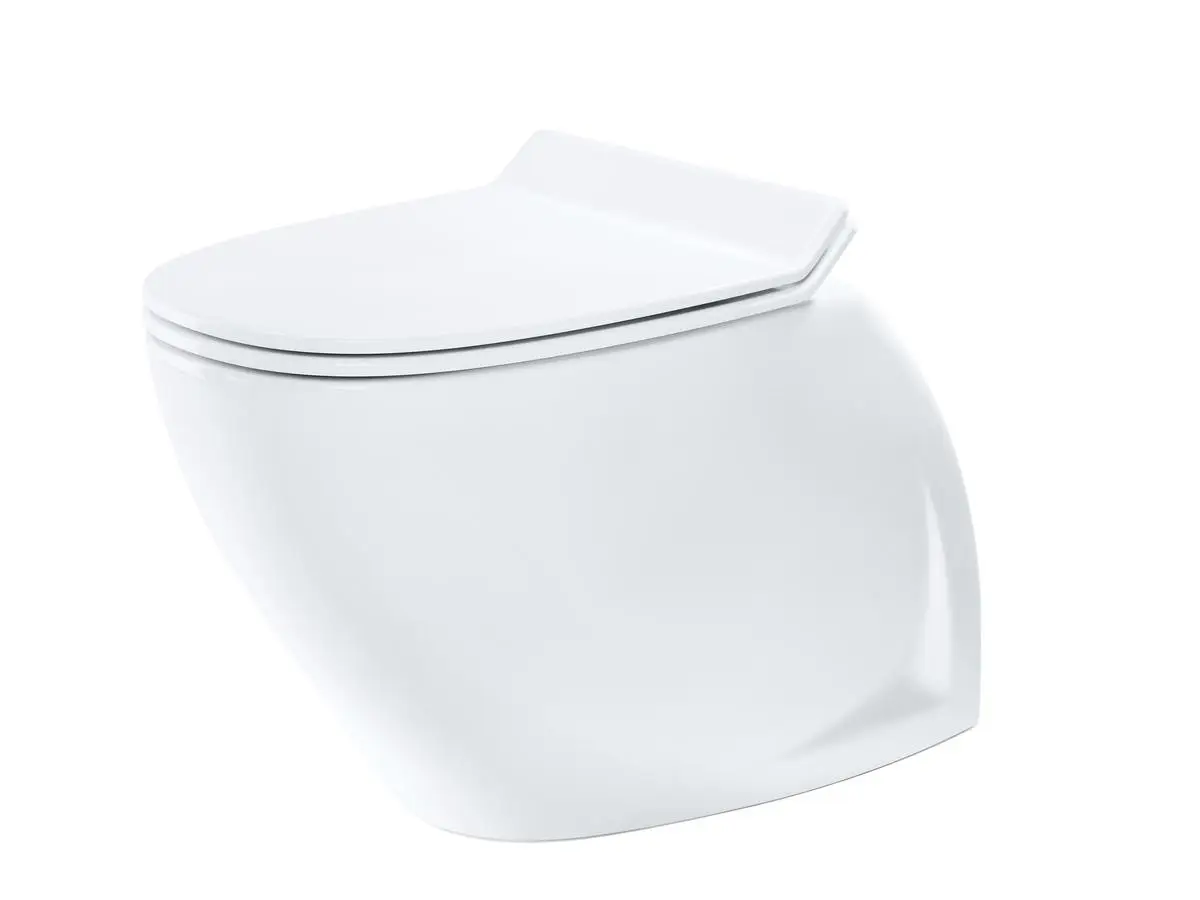

JETS® JADE FLOOR
- SoftsoundTM
- Flushing ring with nozzles
- Designed for easy maintenance
- Low water consumption with
enhanced flush and discharge - Quick and quiet closing seat
and cover
JETS® 50M
- Flushing ring
- The classic model
- Low water consumption
- Soft closing seat and cover

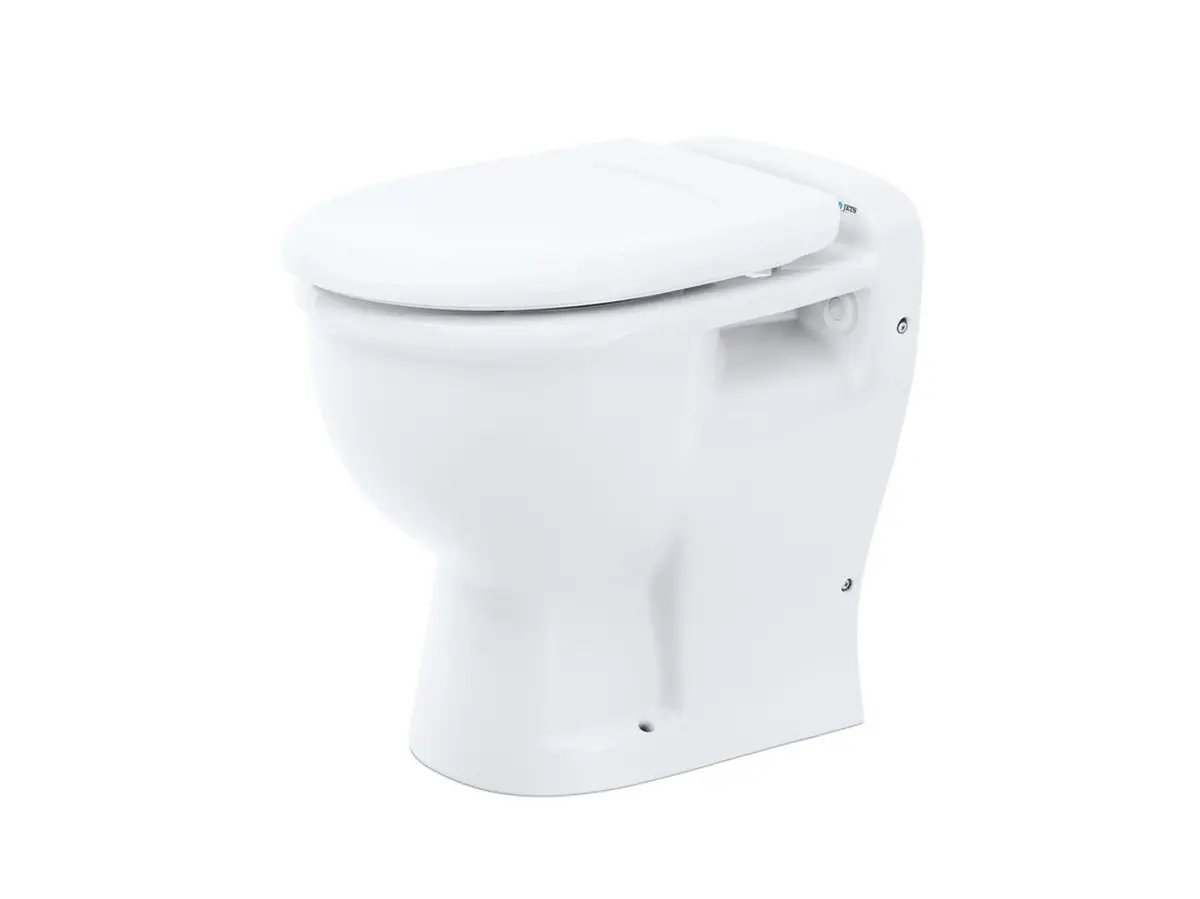

JETS® 55
- Flushing ring
- Compact design
- Low water consumption
- Soft closing seat and cover
JETS® 610SS
- Nozzle flushing
- Low weight
- Low water consumption
- Soft closing seat and cover
Urinals by JETS®
JETS®
720
Stainless steel
- Low weight
- Low water consumption
JETS® 721 and further models
High quality vitreus China
- Low water consumption

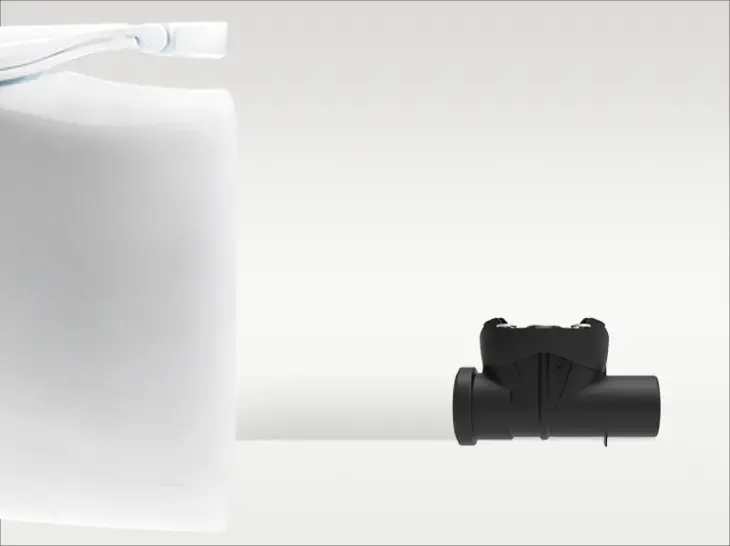

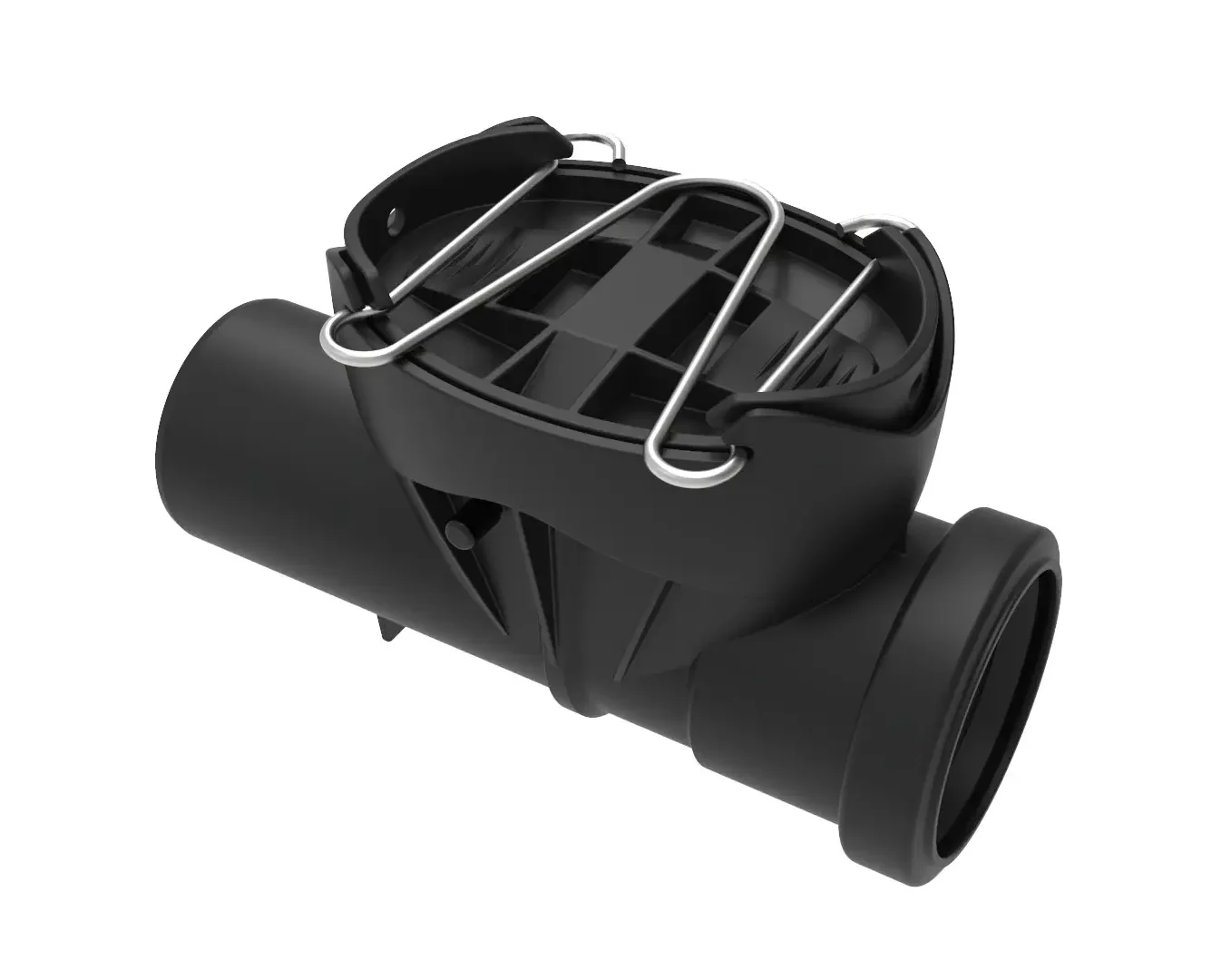

Reduce Downtime - The RagBox™
The new and revolutionary RagBox™ traps objects which can be easily and quickly removed before entering the vacuum piping system. Easy access to the hook reduces downtime of the unit to seconds. Compatibility with the Jets® descale dosing unit simplifies maintenance and saves you valuable time.
Keep vacuum pipes scale free
Jets® vacuum pipe descaling solution will prevent scaling issues quickly, safely and with no downtime.
The reliable Jets® descale dosing unit is designed for controlled, automated chemical feeding for optimization chemical consumption.

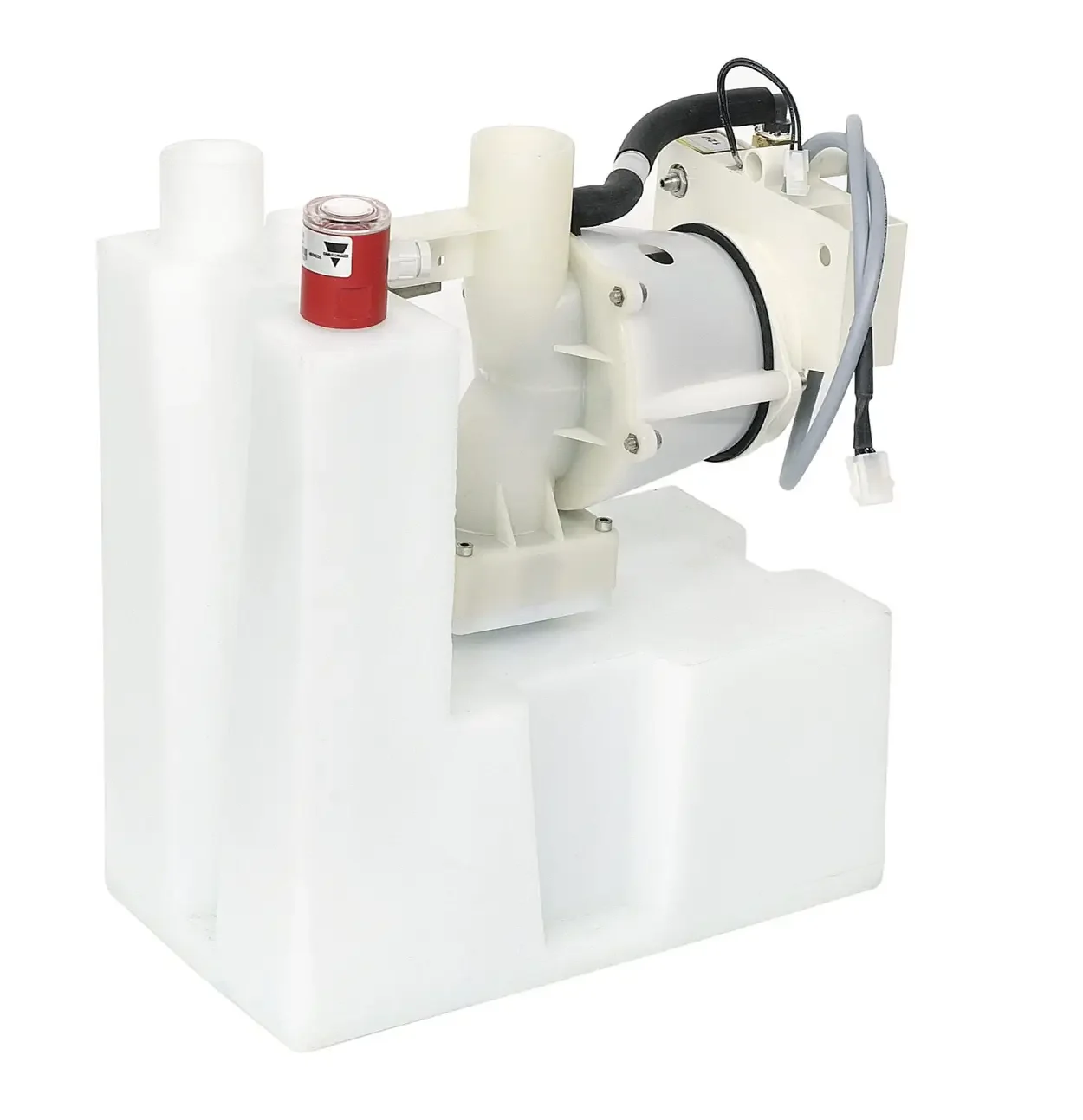

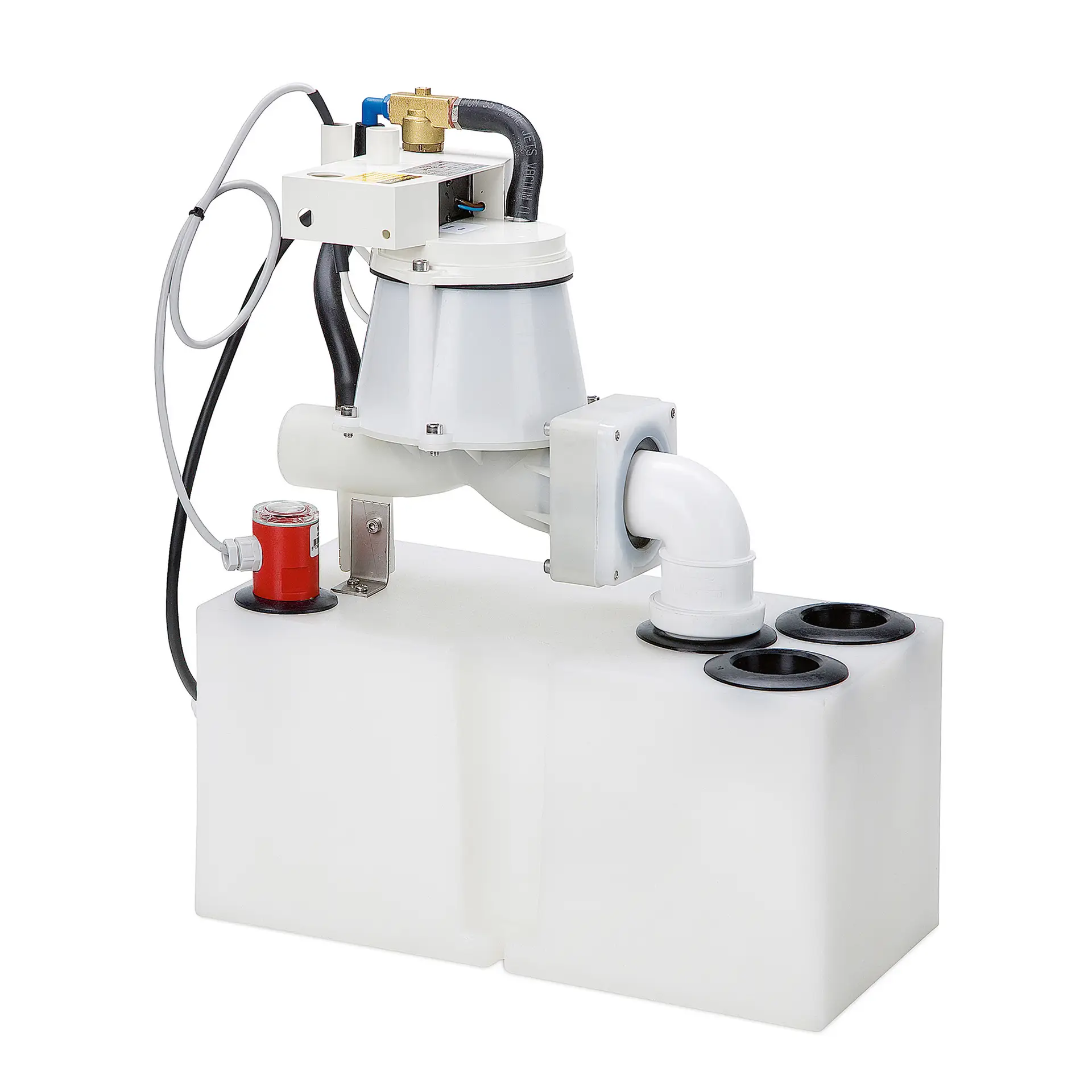

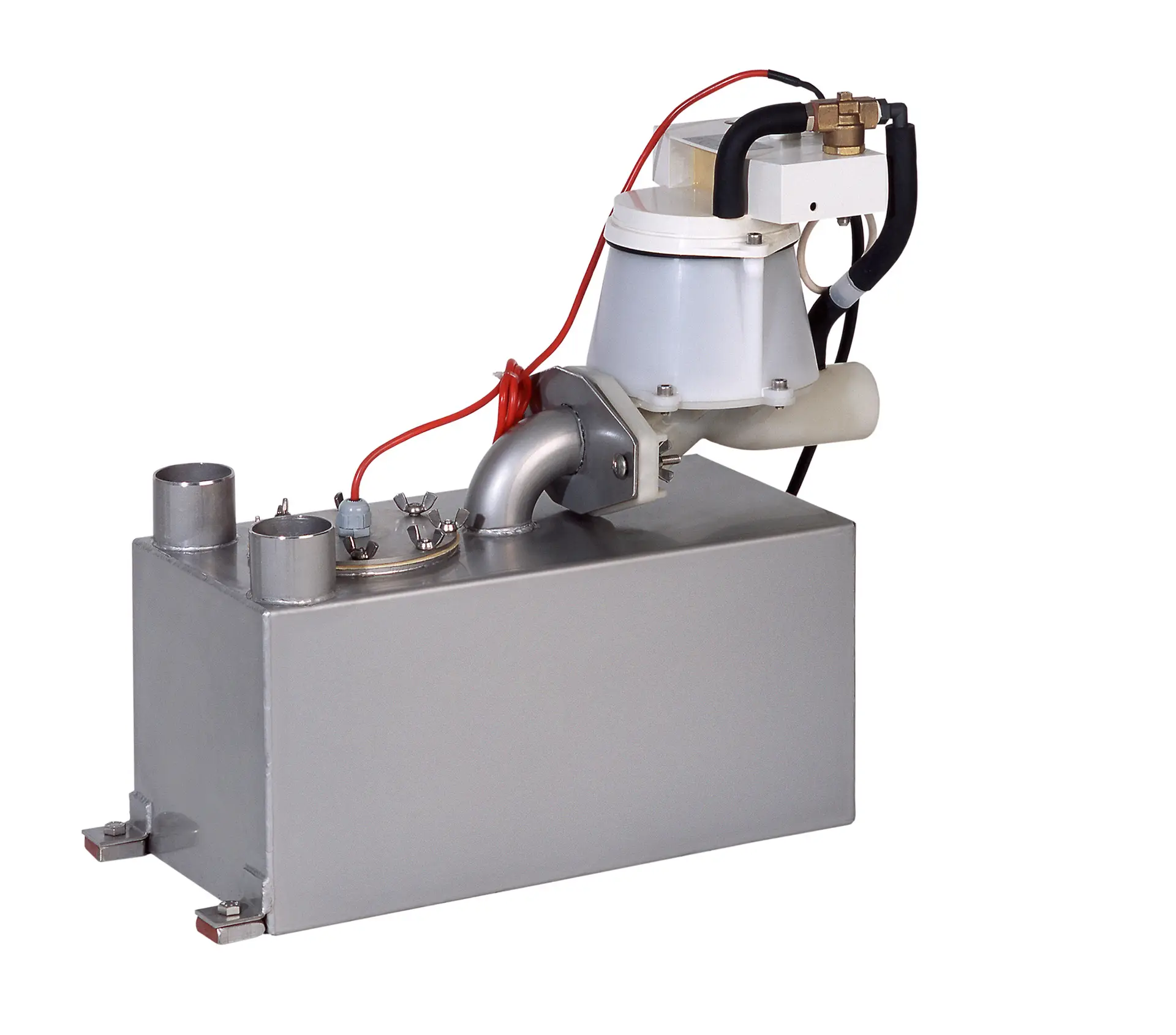

Jets® Grey Water Interface
Transport grey water effortlessly through your vacuum system with Jets® Grey Water Interface.
The Grey Water Interface integrates pipes from grey water sources, like showers and sinks, with the vacuum sanitary system. The interface has no moving parts which makes it function with ease.
Grey water interface tanks are available in various versions: Tank volumes from 7 Ltr. to 15 ltr. and materials PE or AISI 316.
Ecomotive® Sewage Treatment Plants by Jets®
With more than 30 years of experience in sewage treatment plants, Jets® Vacuum understands the requirements of the industry, and has created solutions that are reliable and affordable, without any need for chemicals.
Based on the same MBBR (Moving Bed Bio Reactor) technology, Ecomotive® STP Compact
and Ecomotive® STP Flex by Jets® are space efficient, safe and environmentally friendly.
Certificates
Certified by IMO, EC, US Coast Guard*, Transport Canada*.
*. Approved according to MARPOL Annex 227(64)**.
* not valid for Ecomotive® STP COMPACT.
** not withstanding 4.2, Nitrogen and Phosphorus removal.

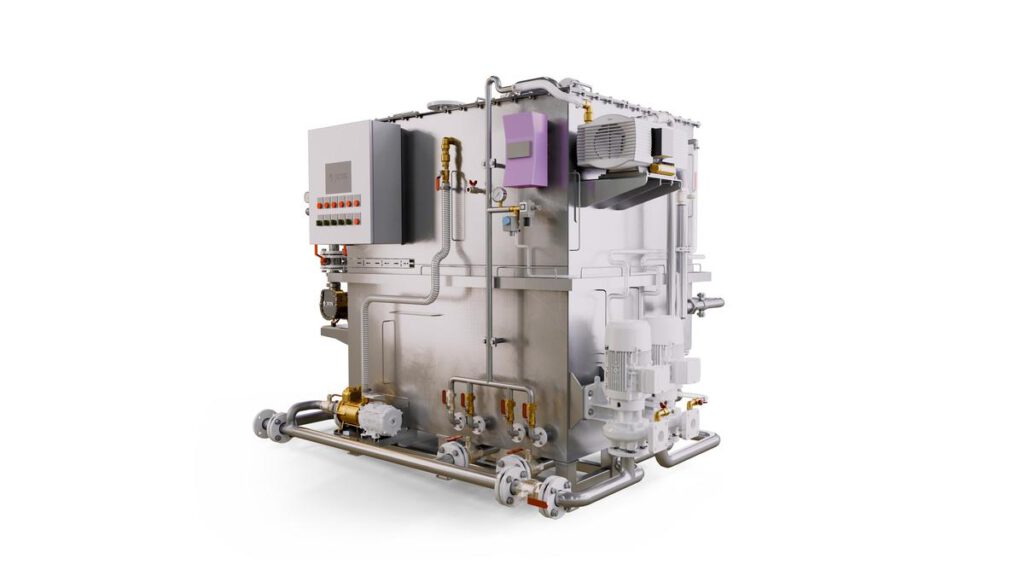

Ecomotive® STP Compact
- Choice of stainless steel or black steel
- Available in four different sizes
- Air distribution pipes accessible from the outside for easy maintenance
- Automatic sludge removal
- Access to all chambers through hatches on the top of the STP
- The STP tanks are raised on legs for complete emptying. This allows for tank disinfection to improve system hygiene and crew safety, while preventing corrosion attacks on the bottom of the
- STP (black steel finish)
- Self-cleaning through continuous movement of biofilm carriers
- UV light disinfection
- Automatic sludge removal eliminates a dirty job for the crew
- Maceration feed pump

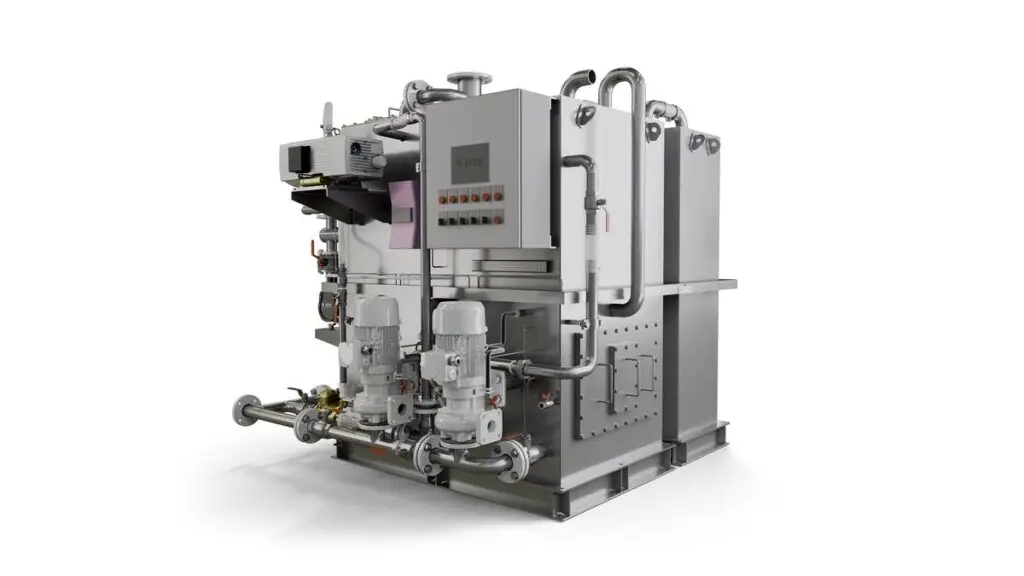

Ecomotive® STP Flex
- Material Stainless Steel
- Available in 14 different sizes and capacities
- Modular design: inlet tank, treatment plant and Vacuumarator® pumps can be installed in separate locations
- USCG type approved range
- Self-cleaning due to the continuous movement of biofilm carriers
- UV light disinfection
- Automatic sludge removal eliminates a dirty job for the crew
- Maceration feed pump
- Vacuum Sanitary Systems
Poloplast
POLOPLAST GmbH & Co KG is an Austrian company with headquarters in Leonding. POLOPLAST develops, produces and sells reinforced, multi-layer plastic pipe systems. The innovative pipe systems have proven themselves in modern and sustainable applications for more than 60 years.

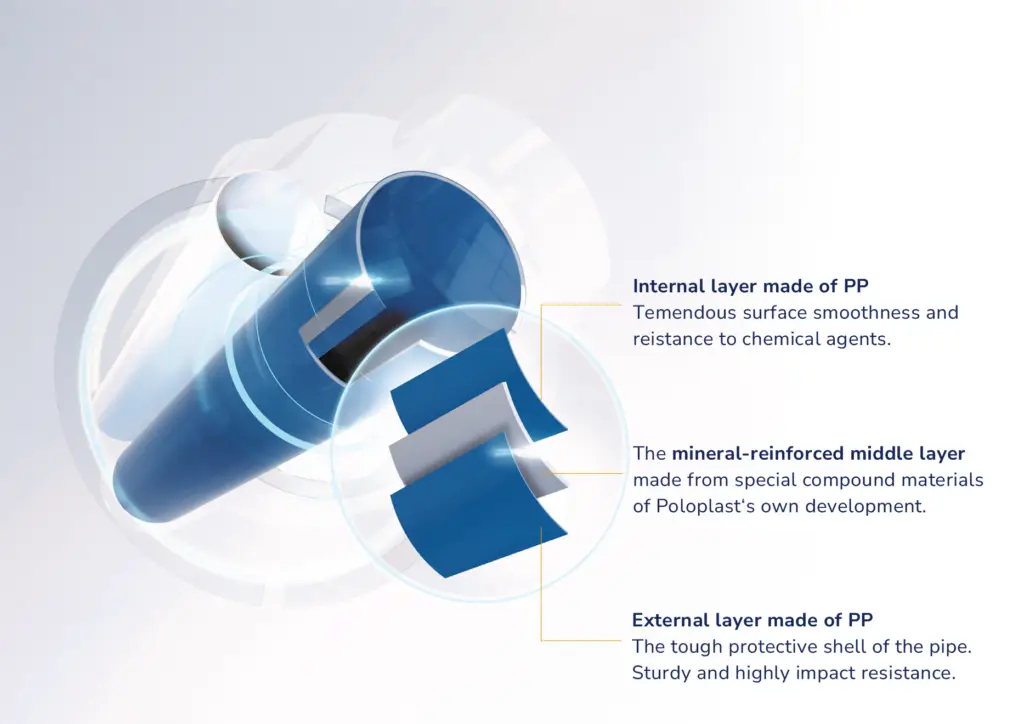

The three-layer, reinforced polypropylene (PP) vacuum piping system is suitable for both black and grey water applications.
The Poloplast vacuum piping system is a propylene multi-layer non-pressure piping system, consisting of pipes, fittings with push-fit sockets and pre-assembled vacuum lip-seals.
These pipes and fittings consist of polypropylene an the inner and outer layer. For reinforcement the middle layer and the fittings consist of additional minerals embedded in the polypropylene.
Norms and type approvals: EN 1451-1, RINA, LR, DNV-GL.
